Since 80 years, a reliable solution in water intake trash rack cleaning

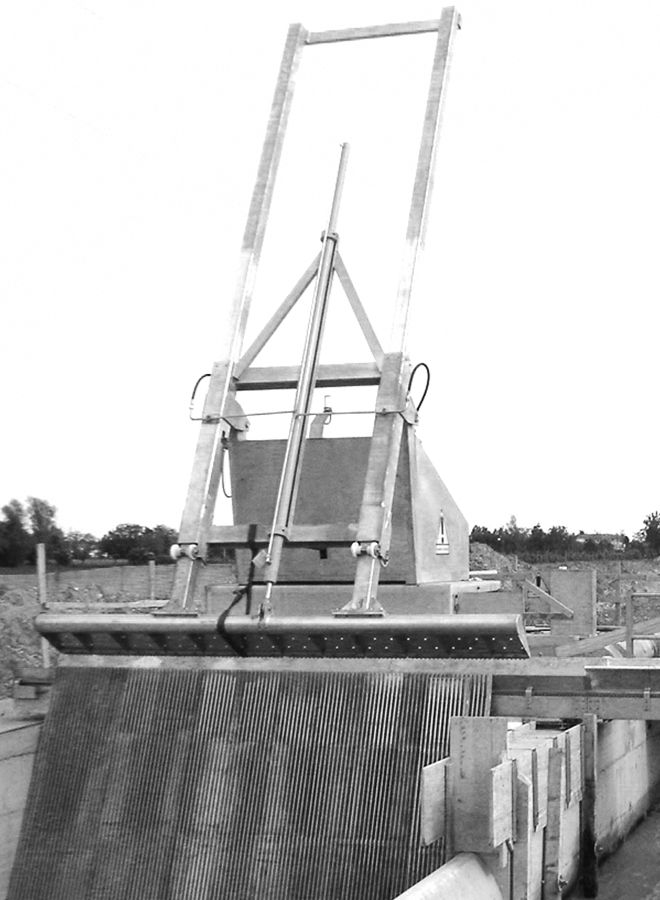

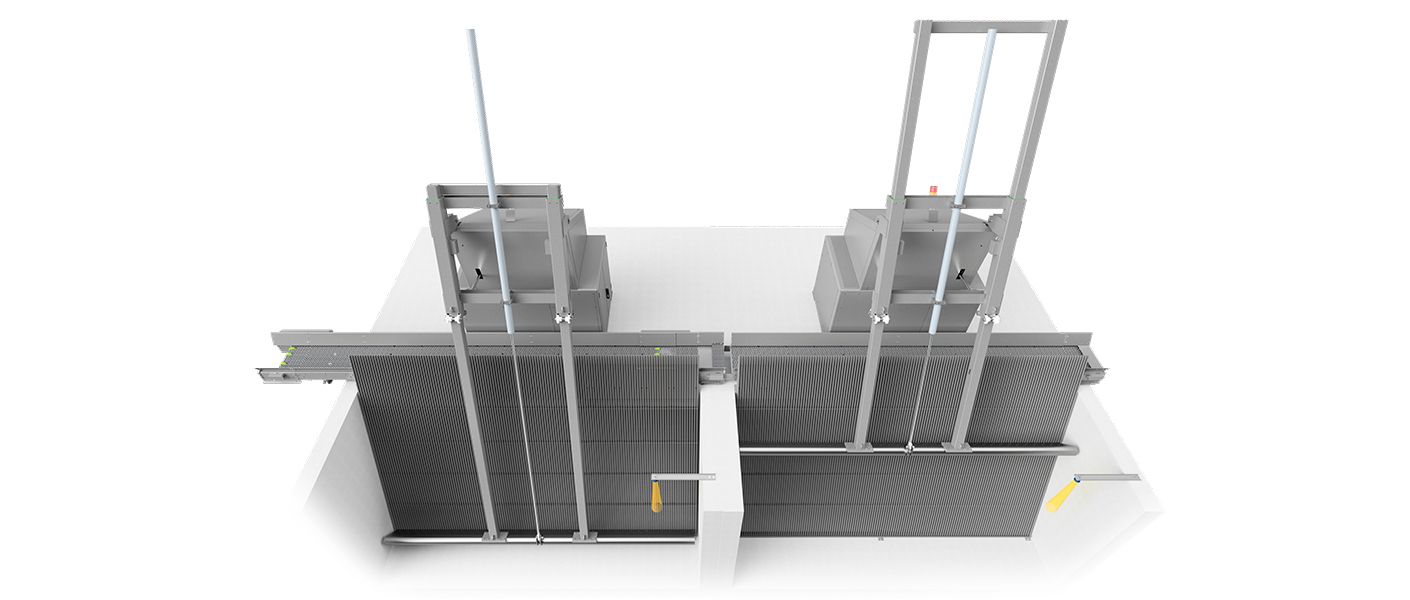

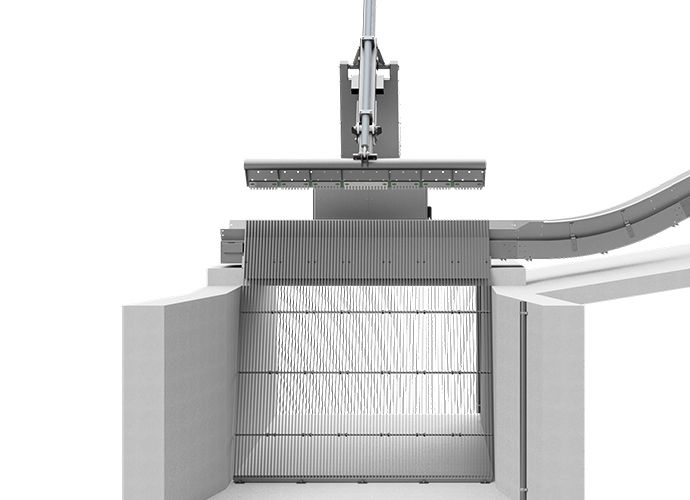

The API® SC Trash Rack Cleaner is a fully automated hydroulic rake of the mono-arm or double-arm type, with single-stage extensible units. It is used to remove the material captured by the grills in intake facilities, always allowing the maximum flow of water to the pumps, turbines or plant. The cleaning action is carried out by the rake, which opens and moves to the lowest point of the grill, then rises back up against it, intercepting and removing the solids retained up to the highest discharge point, where Conveyor Belts are ready to operate continuously and in coordination with the Trash Rack Cleaner. Frame, Rake and Extensible Unit are made of steel with hot-dip galvanisation (ISO 1461) for long-lasting outdoor operation. Switchgear and hydraulic central unit are installed, protected and inside the machine.

Download the technical data sheet

The API® Hydraulic Trash Rack Cleaner

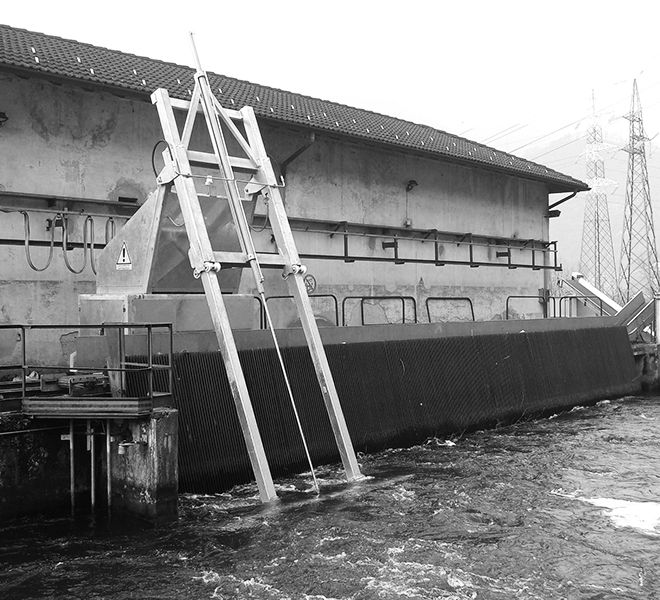

A Trash Rake, also called Trash Rack Cleaner or Trash Rack Cleaning Machine,  is an automatic device that removes the material accumulated on a water intake Trash Rack.  It is an essential device in hydropower plant intake facilities or in Irrigation and Drainage pumping stations. The API® Trash Rack Cleaner is driven by hydraulic cylinders which move the rake mounted on  single-stage or telescopic sliding arms. The rake, which is initially moved out the Trash Rack and lowered into the water to the bottom of that, is later returned to the Rack and lifted to run along it.

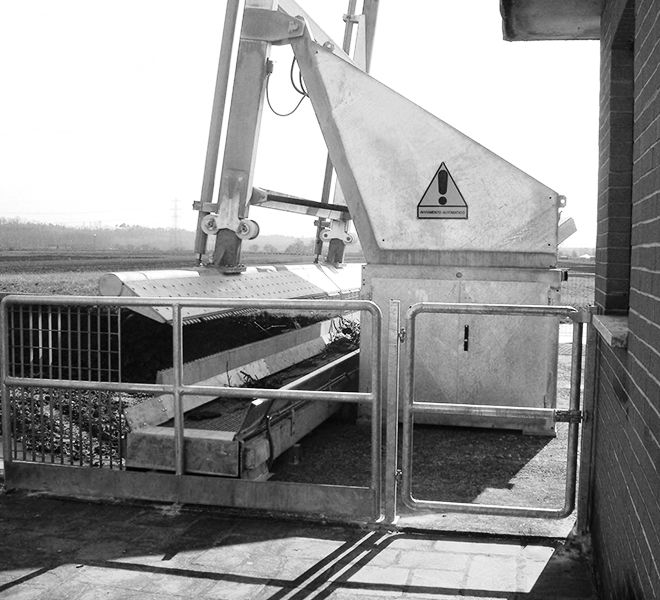

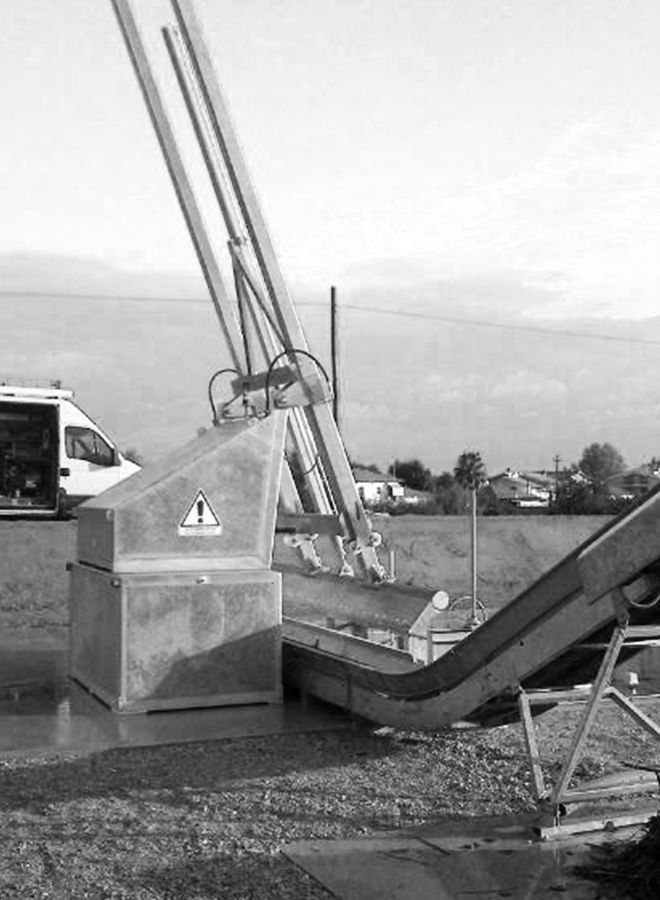

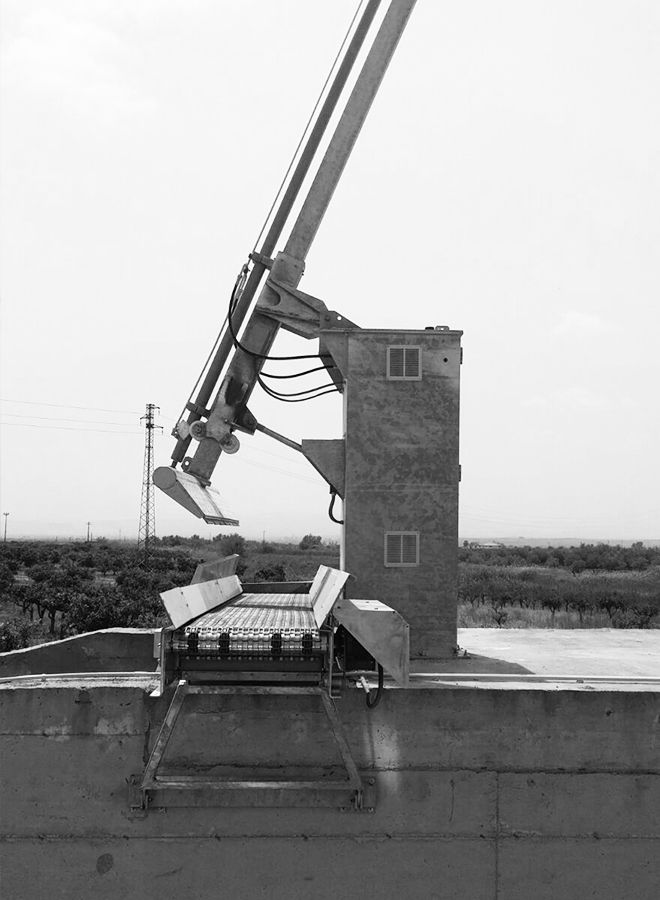

The material intercepted by the Trash Rack Cleaner is lifted up to the head of the Rack and discharged into a duct or onto an API® Conveyor Belt usually supplied with the Trash Rack Cleaner. These debris evacuation systems transport the trash rack cleaner waste into recovery tanks or containers for easy storage and transport.






API® SC Trash Rakes - The Single Stage Hydraulic Rake Series



The API® SC Trash Rack Cleaner is a fully automated hydraulic rake of the single or double arm type, with single-stage extensible units. It is used to remove the material captured by the Trash Racks provided on water intake facilities, always allowing the maximum flow of water to the pumps, turbines or system.

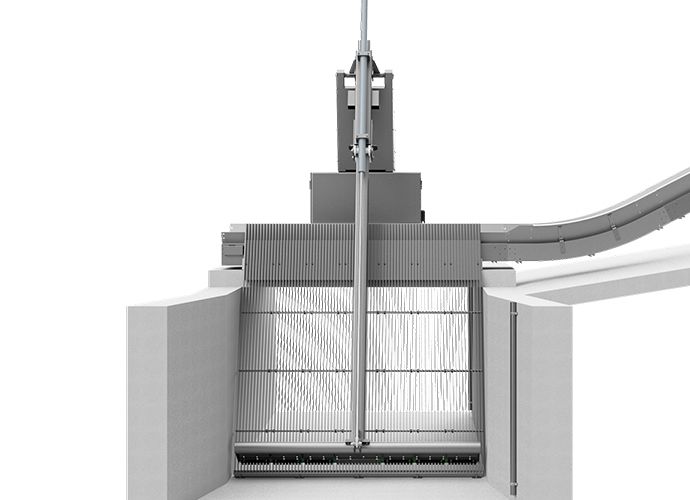

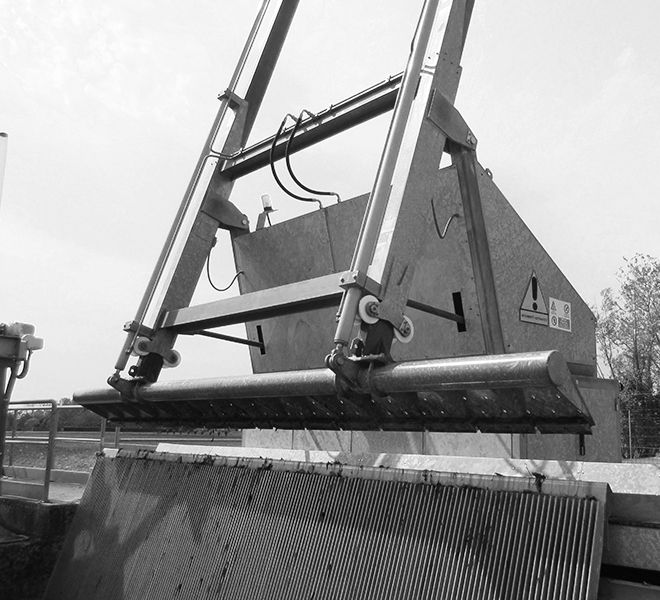

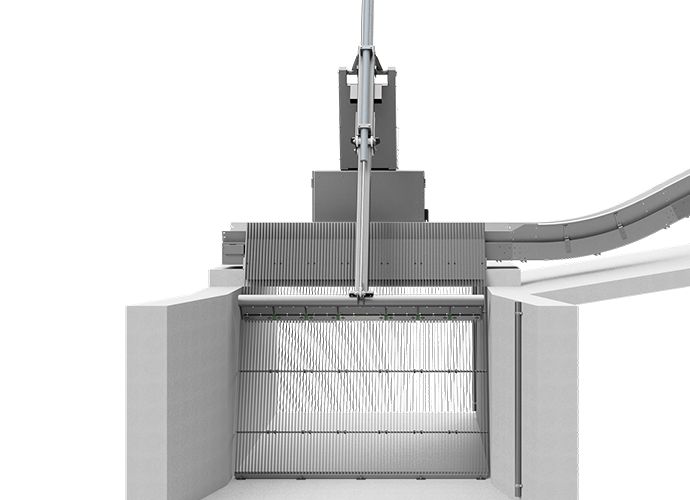

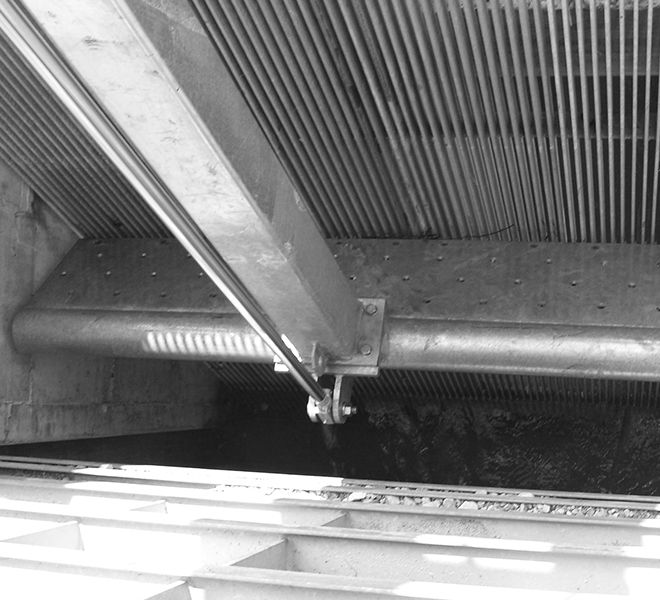

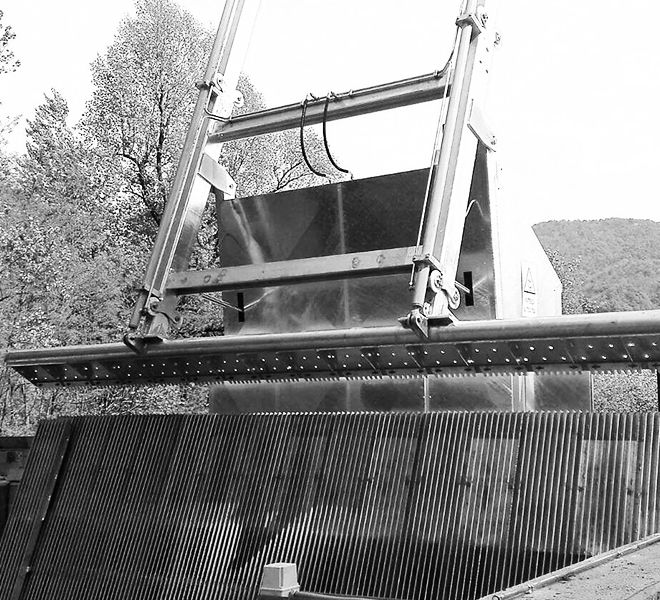

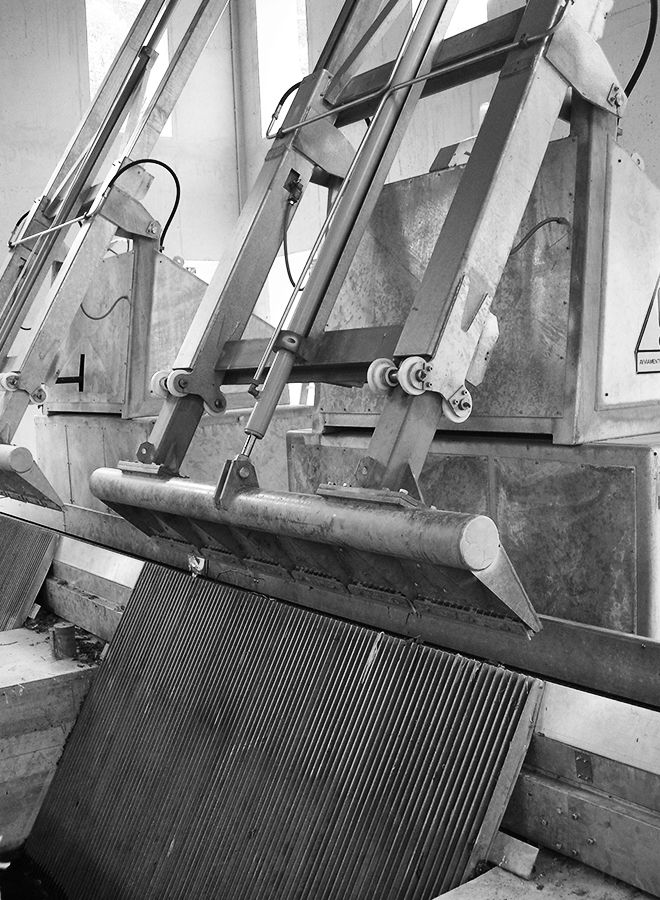

The cleaning action is carried out by the rake, which opens and moves to the lowest point of the Trash Rack , then rises back up against it, intercepting and removing the solids retained up to the highest discharge point, where Conveyor Belts are ready to operate continuously and in coordination with the Trash Rack Cleaner.
Frame, Rake and Extensible Unit are made of steel with hot-dip galvanisation (ISO 1461) for long-lasting outdoor operation.

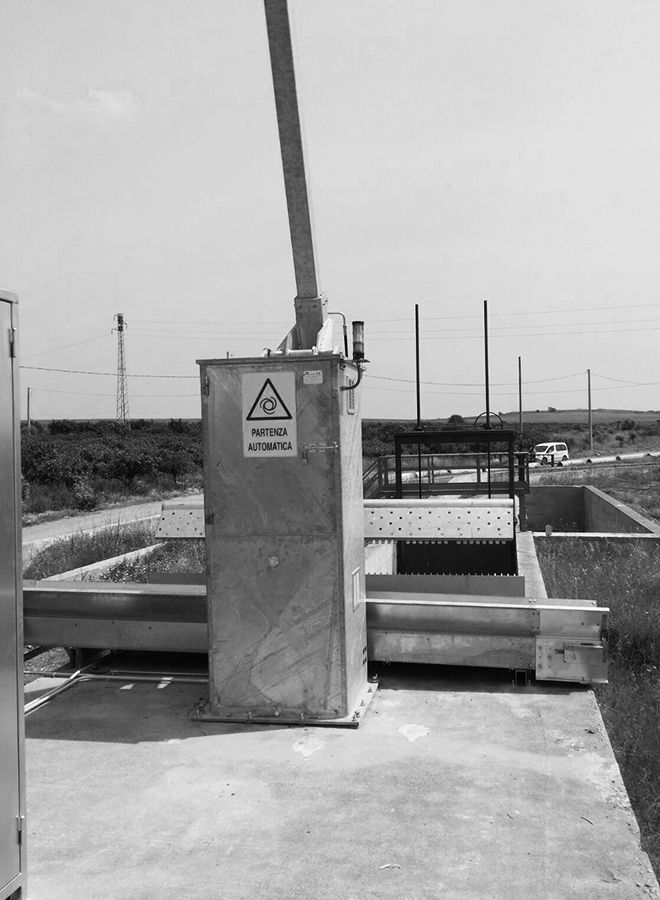

Switchgear and hydraulic central unit are installed, protected and inside the machine.






The API® SC Trash Rakes Range

A range made of six Models with rake width up to 11 meters, stroke up to six 6 metri, a rated capacity of 100 tons per day

API® SC MON/COL

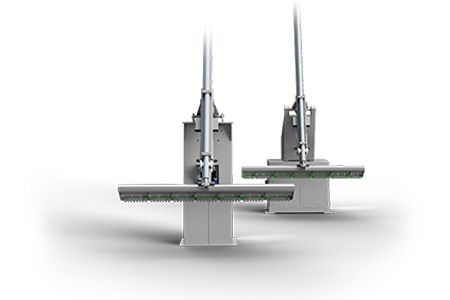

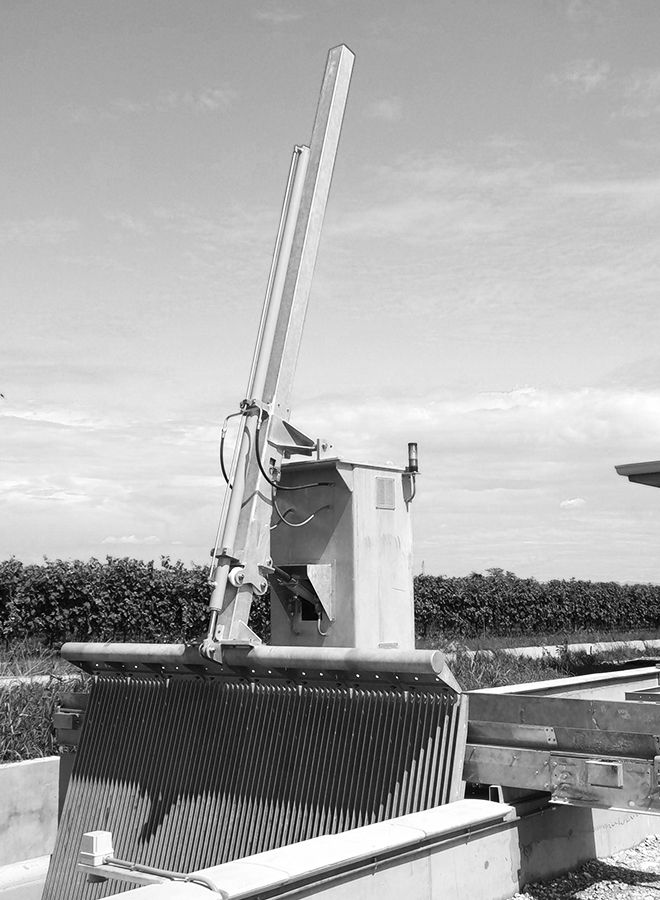

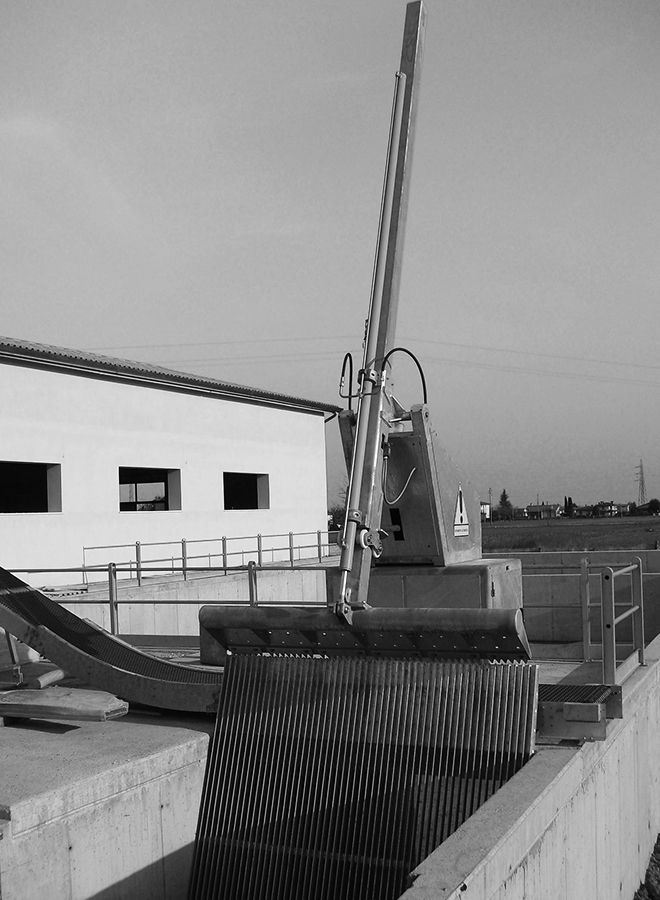

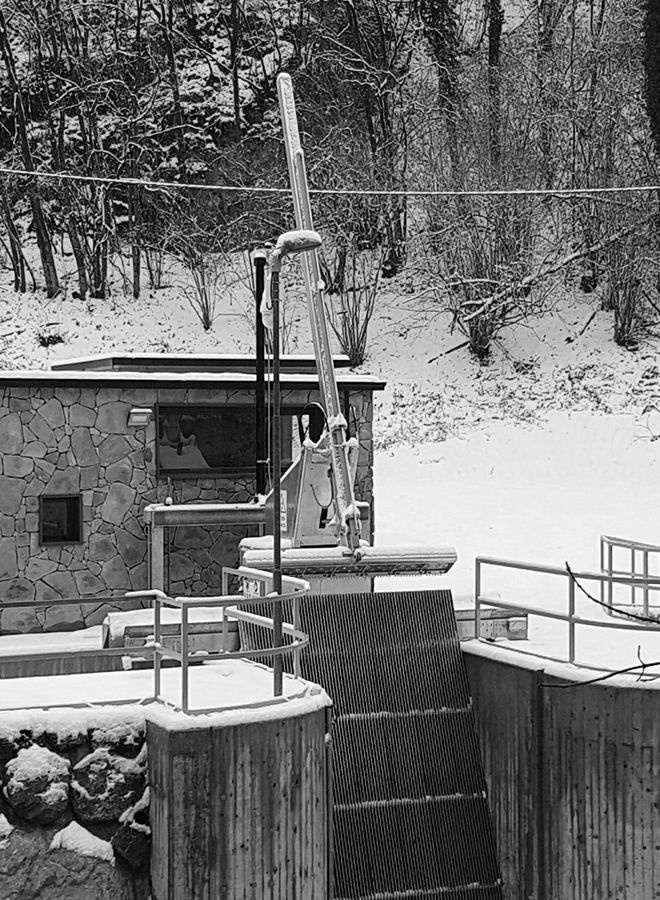

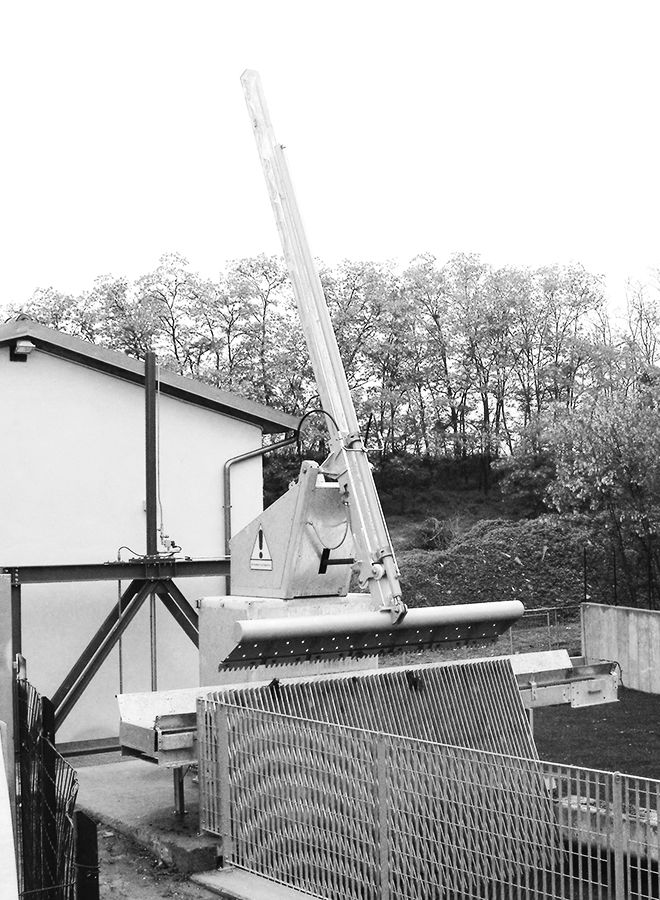

 API® Mono Arm Trash Rake

Up to 4000 mm Rake Width
Rated Capacity 38 Tons/day
Peack Capacity 15 Tons/hr
Rated Power 4kW

API® SC TRF/TRM

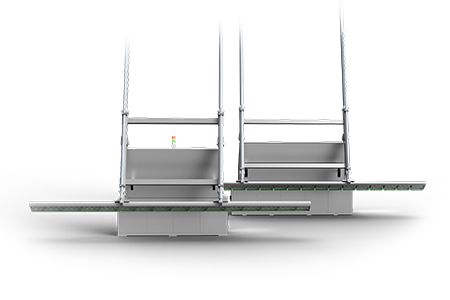

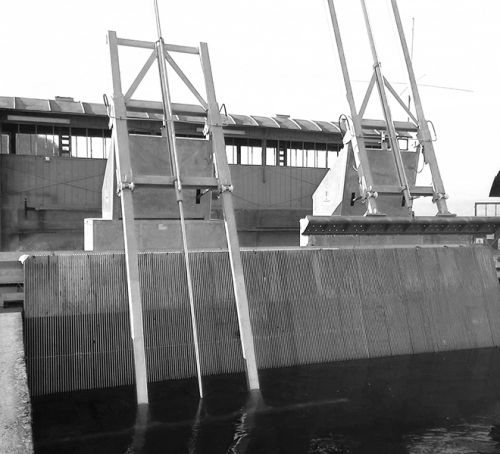

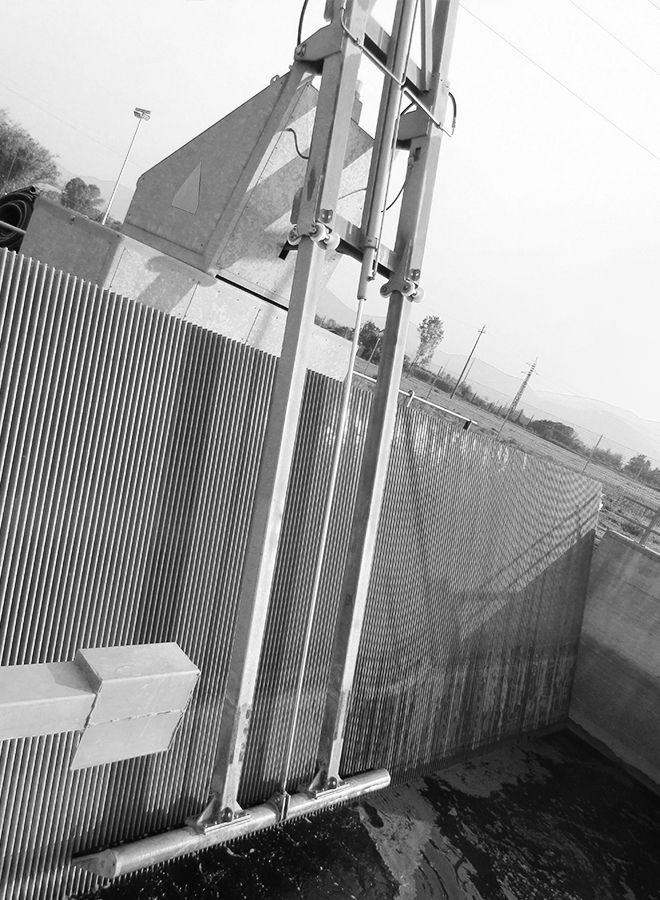

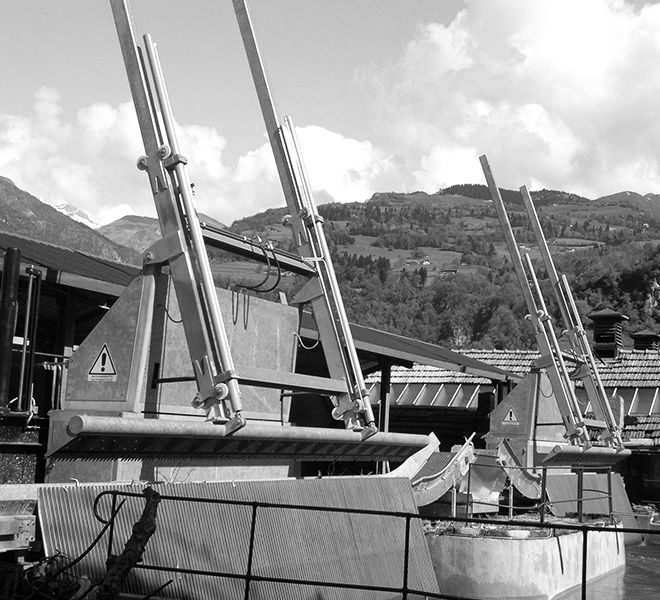

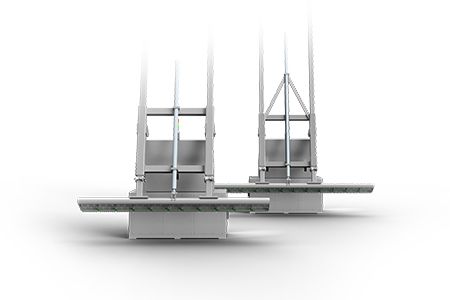

 API® Double Arm Trash Rake

Up to 6500 mm Rake Width
Rated Capacity 60 Tons/day
Peack Capacity 24 Tons/hr
Rated Power 5.5 kW

API® SC DP

 API® Double Piston Trash Rake

Up to 11000 mm Rake Width
Rated Capacity 100 Tons/day
Peack Capacity 44 Tons/hr
Rated Power 7.5 kW





API® SC TRM, The Mobile Trash Rack Cleaning Machine

The Mobile Trash Rack Cleaner, automatic self-propelled moving along the Trash Rack on on rail.   Made of ISO1461 galvanised steel for long-term outdoor use, it cleans the large Trash Rack in more passages to complete the complete front.





The Trash Rack Cleaner which is designed to be ready for use.

Supplied factory-tested, complete with dedicated control panel and PLC with API® proprietary software, the result of decades of specific application experience for the quickest and easiest installation and commissioning.
